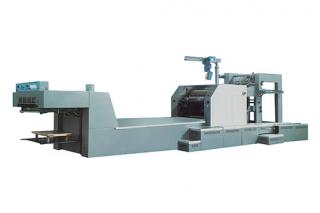

SGZ-UI740X-A Small Automatic Coating Machine
SGZ-UI740X-A Small Automatic Coating Machine
SGZ-UI740X-A Small Automatic Coating Machine
This machine is used for small size paper coating and the ideal for high volume production with high quality.
  • Main specification
  • description

Model

SGZ-UI740X-A

Max. coating size

600×740mm

23.6"× 29.1"

Min. coating size

210×297mm

8.2"× 11.0"

Paper weight

80~450 grams

Max. speed

6500sph

Coating roller number

3

No.×UV power(kw)

3PCS×6.5 kw

Total power(kw)

55kw

Overall dimensions(L×W×H)

7020×1600×1560 mm

21.5'× 5.2'×5.1'

Weight (kg)

2800kg

  • This machine is used for small size paper coating and the ideal for high volume production with high quality.

  • Compact design, easy operation, especially energy-saving and flexibility are easily obtained with SGZ-X series machines which large coating machines can not match.

  • Standard configuration: automatic feeding, reversing coating system,  air knife, adsorption conveying system, pneumatic turn-over UV curing chamber, automatic stacker. It is convenient to clean and maintain coating roller by special designed movable feeder.

  • Special configuration: automatic feeder and automatic stacker could be chose according to customer for reducing cost.

  • Option:1)powder cleaner which could remove paper surface powder;

  • 2)IR hot-wind drying which used for water-based and blister varnish coating.
